Fixed Camera Module

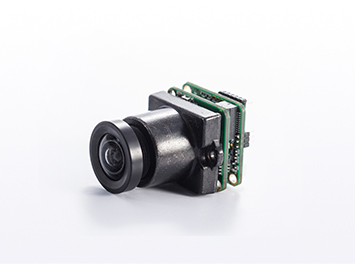

BVM-M001 _ Fixed Camera

BVM-M001-HDSDI is an HD-SDI vision camera . With its compact design.

Key Features

  • Uncompressed high quality FULL HD video with 60 frame rate
  • Support Built-in HD-SDI TX(270M/1.485G/2.97G)
  • Embedded EX-SDI Encoder (Long Reach, about 500M)
  • Supported DIS(Digital Image Stablizer)System
  • Patented intelligent IR protection technology
  • Contrast Enhancement ( Local Exposure ),Adaptive Contrast Enhancer(ACE)
  • AWB(Automatic White Balance)
  • AE(Automatic Exposure)
  • BLC(Back Light Compensation)
  • DFC(Defective Pixel Correction) on the fly
  • HD video transmission up to 100M
  • Sony 1/2.8” IMX-291 CMOS, 2Megapixel
  • Up to 1920X1080 30f resolution
  • Composite video output for instant camera test or for conventional use with SD DVR
  • 2D/3D DNR (Digital Noise Reduction),Optical zoom , Digital zoom,Wide Dynamic Range(WDR)
  • ADC Interface for external control of OSD (Using controllers, etc. )
  • DC12V
