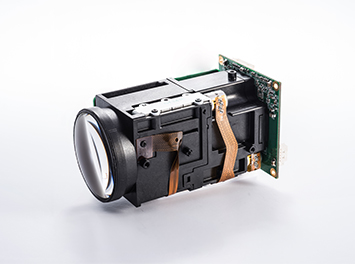

12X Zoom AF Camera module
- 홈
- PRODUCT
- 12X Zoom AF Camera module
- 12X Zoom AF Camera module
- EEM012 _ 12X AF Camera
EEM012-HDSDI is an BT1120 output format vision camera . With its compact design.
Key Features
- ▶Uncompressed high quality FULL HD video with 60 frame rate
- ▶Support Built-in HD-SDI TX(270M/1.485G/2.97G)
- ▶Embedded EX-SDI Encoder (Long Reach, about 500M)
- ▶Supported DIS(Digital Image Stablizer)System
- ▶Fast Auto Focus with continuous tracking
- ▶Patented intelligent IR protection technology
- ▶Contrast Enhancement ( Local Exposure ),Adaptive Contrast Enhancer(ACE)
- ▶AWB(Automatic White Balance)
- ▶AE(Automatic Exposure)
- ▶BLC(Back Light Compensation)
- ▶DFC(Defective Pixel Correction) on the fly
- ▶Remote lens control via standard controller (RS232)
- ▶HD video transmission up to 100M
- ▶Sony 1/2.8” IMX-291 CMOS, 2Megapixel
- ▶Up to 1920X1080 30f resolution
- ▶Built-in DC Auto Iris with IR cut Filter conversion system
- ▶Composite video output for instant camera test or for conventional use with SD DVR
- ▶2D/3D DNR (Digital Noise Reduction),Optical zoom , Digital zoom,Wide Dynamic Range(WDR)
- ▶ADC Interface for external control of OSD (Using controllers, etc. )
- ▶DC12V
EEM012-USB2.0 is an USB2.0 vision camera . With its compact design.
Key Features
- ▶commpressed MJPEG FULL HD video with 30 frame rate
- ▶Supported DIS(Digital Image Stablizer)System
- ▶Fast Auto Focus with continuous tracking
- ▶Patented intelligent IR protection technology
- ▶Contrast Enhancement ( Local Exposure ),Adaptive Contrast Enhancer(ACE)
- ▶AWB(Automatic White Balance)
- ▶AE(Automatic Exposure)
- ▶BLC(Back Light Compensation)
- ▶DFC(Defective Pixel Correction) on the fly
- ▶Remote lens control via standard controller (RS232)
- ▶Sony 1/2.8” IMX-291 CMOS, 2Megapixel
- ▶Up to 1920X1080 30f resolution
- 12X Zoom AF Camera module
- EEM012 _ 12X Zoom Camera _ M.F.M
EEM012-AFM is a module that controls the zoom and focus motor automatically. With its compact design.
Key Features
- ▶Fast auto Focus with continuous tracking
- ▶Built-in DC Auto Iris with IR cut Filter conversion system
- ▶Control using RS232
- ▶ADC Interface for external control of zoom motor and focus motor
- ▶The I2C interface is used to accept and process the Auto Focus data.
- ▶It is the same as hardware EEM012-MFM.
- ▶DC12V
EEM012-MFM is a module that controls the zoom and focus motor manually. With its compact design.
Key Features
- ▶Fast manual Focus with continuous tracking
- ▶Built-in DC Auto Iris with IR cut Filter conversion system
- ▶Control using RS232
- ▶ADC Interface for external control of zoom motor and focus motor
- ▶DC12V
